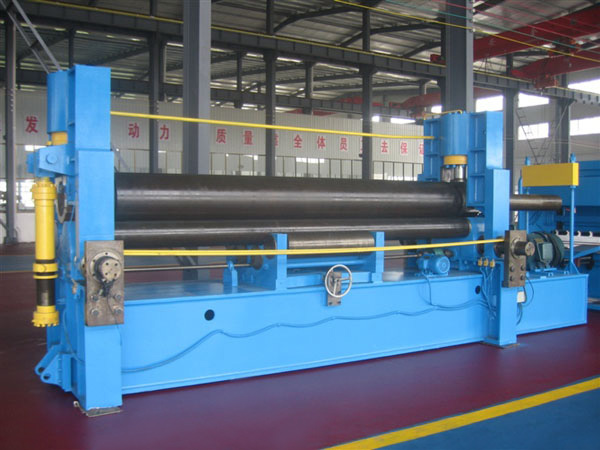

中型上辊万能式卷板机技术参数：
规格型号 |
上辊加压力 (Tons) |
最大板厚 |
板 幅 (mm) |
上辊直径 (mm) |
下辊直径 (mm) |
中心距 (mm) |
电动机(kw) |
|||
端曲 (mm) |
中央 (mm) |
驱动用 |
油压用 |
移动用 |
||||||
W11S-15×2000 |
75 |
12 |
15 |
2000 |
255 |
150 |
245 |
7.5 |
4 |
1.1 |
W11S-14×2500 |
75 |
10 |
14 |
2500 |
270 |
150 |
245 |
7.5 |
4 |
1.1 |
W11S-13×3000 |
75 |
9 |
13 |
3000 |
290 |
150 |
245 |
7.5 |
4 |
1.1 |
W11S-17×2500 |
100 |
13 |
17 |
2500 |
300 |
165 |
270 |
15 |
5.5 |
1.5 |
W11S-15×3000 |
100 |
11 |
15 |
3000 |
325 |
165 |
270 |
15 |
5.5 |
1.5 |
W11S-20×2500 |
130 |
16 |
20 |
2500 |
330 |
180 |
300 |
15 |
5.5 |
2.2 |
W11S-18×3000 |
130 |
14 |
18 |
3000 |
350 |
180 |
300 |
15 |
5.5 |
2.2 |
W11S-22×2500 |
160 |
18 |
22 |
2500 |
360 |
200 |
330 |
18.5 |
7.5 |
2.2 |
W11S-20×3000 |
160 |
16 |
20 |
3000 |
375 |
200 |
330 |
18.5 |
7.5 |
2.2 |
W11S-18×3500 |
160 |
14 |
18 |
3500 |
390 |
200 |
330 |
18.5 |
7.5 |
2.2 |
W11S-24×2500 |
190 |
21 |
24 |
2500 |
380 |
220 |
360 |
22 |
7.5 |
4 |
W11S-22×3000 |
190 |
19 |
22 |
3000 |
400 |
220 |
360 |
22 |
7.5 |
4 |
W11S-19×3500 |
190 |
16 |
19 |
3500 |
410 |
220 |
360 |
22 |
7.5 |
4 |
W11S-29×2500 |
230 |
25 |
29 |
2500 |
410 |
235 |
380 |
30 |
11 |
4 |
W11S-27×3000 |
230 |
21 |
25 |
3000 |
425 |
235 |
380 |
30 |
11 |
4 |
W11S-25×3500 |
230 |
21 |
25 |
3500 |
440 |
235 |
380 |
30 |
11 |
4 |
W11S-33×2500 |
270 |
28 |
33 |
2500 |
430 |
250 |
400 |
30 |
11 |
4 |
W11S-30×3000 |
270 |
25 |
30 |
3000 |
450 |
250 |
400 |
30 |
11 |
4 |
W11S-28×3500 |
270 |
23 |
28 |
3500 |
470 |
250 |
400 |
30 |
11 |
4 |
W11S-25×4000 |
270 |
20 |
25 |
4000 |
490 |
250 |
400 |
30 |
11 |
4 |
W11S-36×2500 |
320 |
30 |
36 |
2500 |
460 |
260 |
420 |
37 |
15 |
5.5 |
W11S-32×3000 |
320 |
28 |
32 |
3000 |
480 |
260 |
420 |
37 |
15 |
5.5 |
W11S-28×3500 |
320 |
25 |
28 |
3500 |
500 |
260 |
420 |
37 |
15 |
5.5 |
W11S-26×4000 |
320 |
22 |
26 |
4000 |
520 |
260 |
420 |
37 |
15 |
5.5 |
W11S-39×2500 |
380 |
35 |
39 |
2500 |
500 |
275 |
460 |
45 |
22 |
5.5 |
W11S-35×3000 |
380 |
32 |
35 |
3000 |
510 |
275 |
460 |
45 |
22 |
5.5 |
W11S-32×3500 |
380 |
28 |
32 |
3500 |
530 |
275 |
460 |
45 |
22 |
5.5 |
W11S-30×4000 |
380 |
25 |
30 |
4000 |
550 |
275 |
460 |
45 |
22 |
5.5 |
W11S-43×2500 |
430 |
40 |
43 |
2500 |
520 |
290 |
500 |
55 |
22 |
7.5 |
W11S-38×3000 |
430 |
35 |
38 |
3000 |
540 |
290 |
500 |
55 |
22 |
7.5 |
W11S-36×3500 |
430 |
30 |
36 |
3500 |
560 |
290 |
500 |
55 |
22 |
7.5 |
W11S-32×4000 |
430 |
28 |
32 |
4000 |
580 |
290 |
500 |
55 |
22 |
7.5 |
W11STNC-15×2000 -- W11STNC-32×4000 |
同 上 |
|||||||||
W11ST&BNC-15×2000 -- W11ST&BNC-32×4000 |
同 上 |
|||||||||
